Brake Modules

BM600

• DC Braking Module – 155V threshold
  (A800990 – For Q800 or A800 series)
• DC Braking Module – 317V threshold
  (A800991 – For Q800 or A800 series)
• DC Braking Module – 360V threshold
  (A800992 – For Q800 or A800 series)

BM601

• Regenerative Protection Module
  (A800993 – Mounted on vehicle)

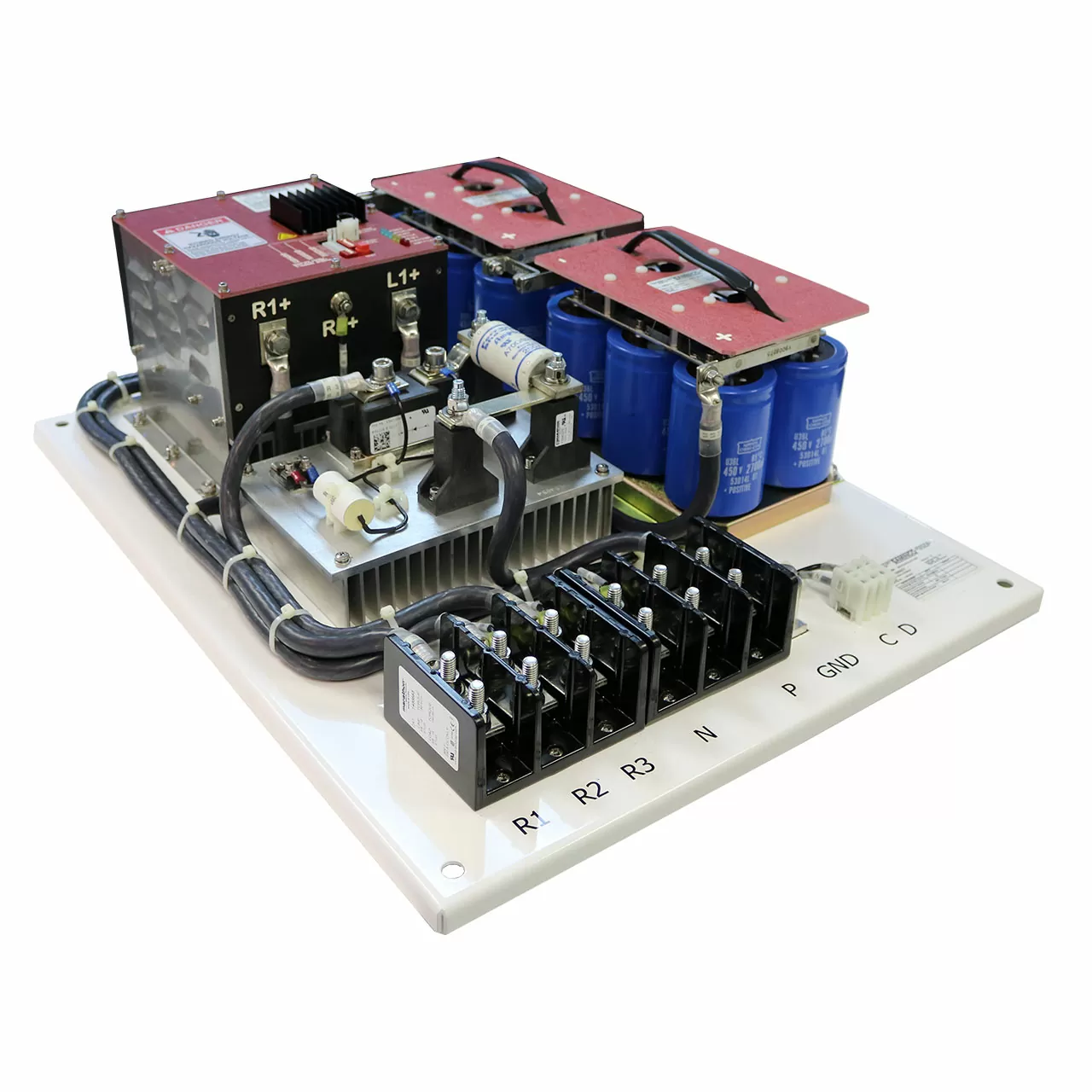

• BM601 Brake Module Panel Assembly
  (A800994 – Mounted on power center for Shuttle Cars)

VFD Brake Resistor Assembly

• Used with Rectifier Brake Module
  (A800675 – AC/AC Shuttle Cars)

VFD Dynamic Brake Resistor

• Used with Rectifier Brake Module
  (A800683 – AC/AC Shuttle Cars)
