We are a value-added distributor & manufacturer of industrial controls

JR1000 Family of 1000VAC

VFD* Systems for underground mining applications

VF1-75 DC/AC VFD* System

VFD* Systems for rubber-tire-man-carriers, LHD, jumbo-drills & mining trucks

VF Series Battery VFD* Systems

Available in 128V-240V for scoops, shield, battery haulers & mantrips

550VDC DC/AC VFD* System

For shuttle cars

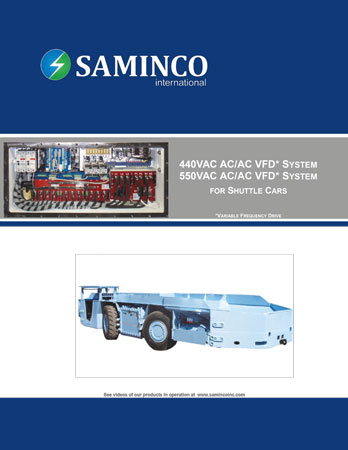

440VAC / 550VAC AC/AC VFD* Systems

For shuttle cars

VF Series Battery VFD* Systems

Available In 128V-240V for 10 ton locomotive,
monorail & rubber tire man carriers

Q800 Series

Digital DC/DC locomotive controller (also for man-trips & utility vehicles)

JD400

Digital AC/DC drive (for continuous miners & shuttle cars)

Cool-Torque™ Motors

For continuous miners & shuttle cars using the JR1000 System

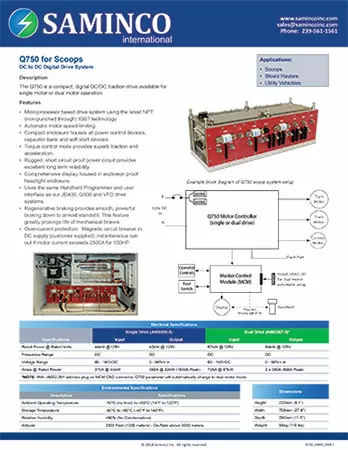

Q750 System

For scoops, shield haulers, utility vehicles – available for single or dual drive 120 VDC

VX2 – 1000V

Variable frequency drive
1140V liquid-cooled VFD modules for mining applications

VFD – 3 Shuttle Car

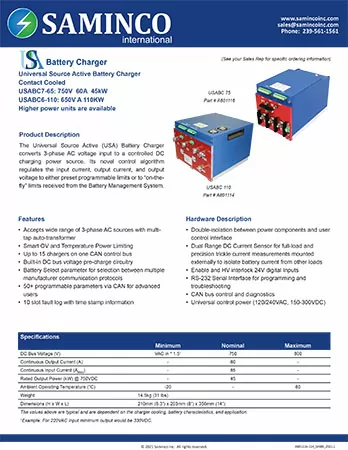

USA Battery Charger

Shuttle Car Systems

Scoop Systems

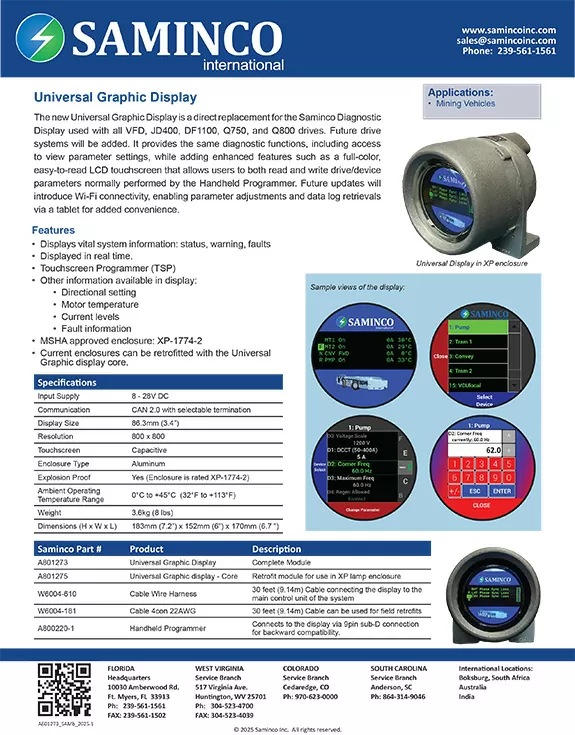

Universal Graphic Display

Capabilities

• Complete range of soft start / motor control
• Motor protection & control solutions

Product List

• Low & medium voltage soft starters
• Motor protection, DC injection brakes
• SCR power controls

Combination Starters

RVS-DN

• Heavy duty soft starter
• For the most demanding applications
• Rating: 8-3000A, 230 – 120V

HRVS-DN

• Medium voltage soft starter
• Rugged durable performance
• Ratings: 2.3KV to 15KV

MPS-3000

• Motor protection & control
• Advanced monitoring & protection
• For low voltage & medium voltage motors

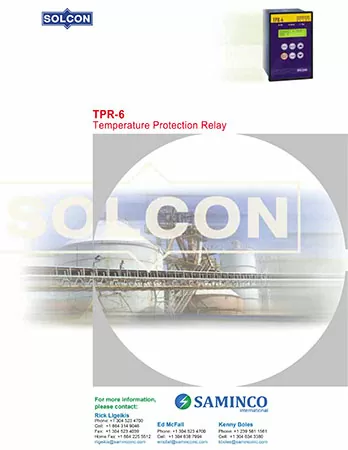

TPR-6

• Temperature protection relay
• Dependable performance in a compact package
• Monitors 1 – 14 RDT / thermistor inputs

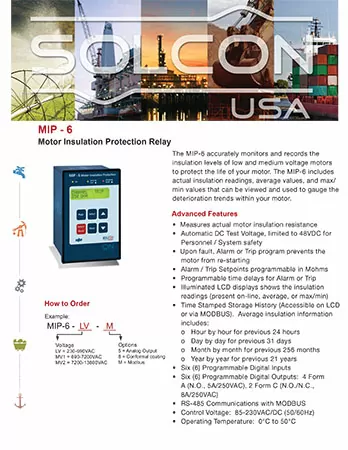

MIP-6

• Motor insulation protection relay

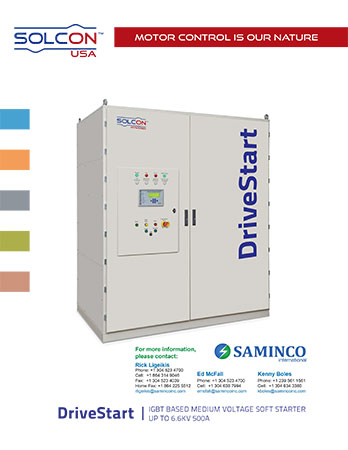

Drive Start

• IGBT based medium voltage soft starter
• Up to 6.6KV 500A

MV1000

Medium voltage AC drive, 175 HP to 16,000 HP

U1000

Industrial matrix drive applications

iQPump

Drive products
Intelligent pump control

A1000

Variable speed drive – a single drive for all your needs

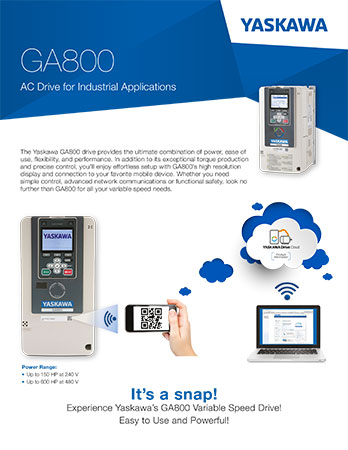

GA800

Experience Yaskawa’s GA800 variable speed drive! Easy to use & powerful!
