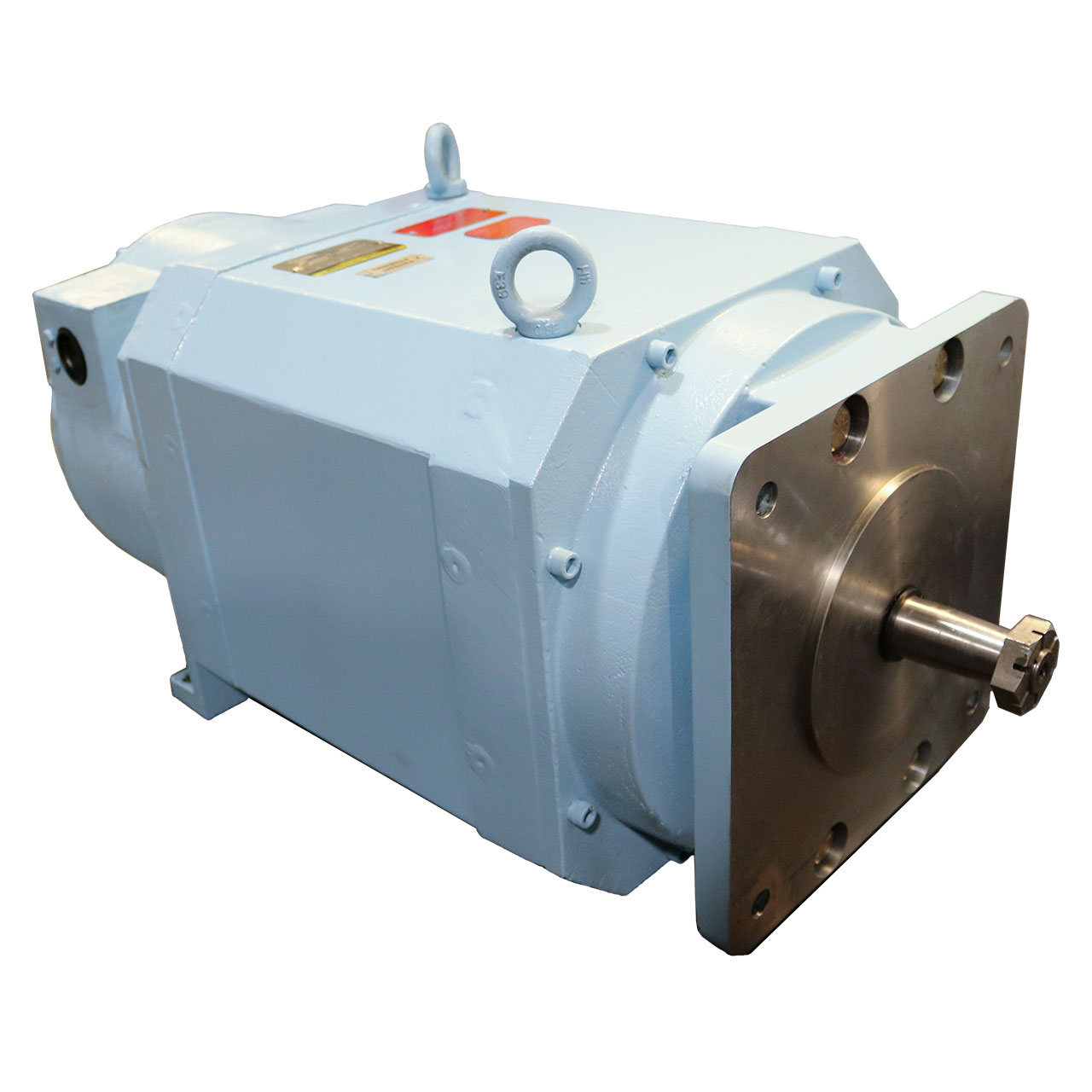

M6005-066 – AC Traction Motor
Part Number
M6005-066
Motor Number
non-XP
Description
- Robust all steel “mine-duty” round barrel construction
- Low-loss copper-barred rotors are a copper alloy fabricated design for high efficiency, less slip and lower rotor losses (compared to equivalent aluminum die-cast rotors)
- Saminco encoder has 120° thermal rating
- Motor has flexibility to adapt to individual load requirements
- Custom manufactured for Saminco
Specifications
| Motor Specifications | M6005-066 |
|---|---|
| Peak Torque | 1500Nm |
| Power Rating | 80kW |
| Voltage | 440V AC |
| Phase | 3 |
| Poles | 4 |
| Frequency – Base | 50 Hz |
| Current | 145A |
| RPM | 1490 |
| Duty | 60 min |
| Frame | XL 3698AY |
| Mounting | Foot |
| Temperature Rise | 120°C |
| Insulation | H |
| Cooling | Non-ventilated |
| Enclosure | T.E.N.V. |
| Encoder | Yes |
| MSHA Approval # | Non- XP |
| Height | 452mm (17.8”) |
| Width | 450mm (17.7”) |
| Length | 946mm (37.25”) |
| Weight | 644kg (1420 lbs) |
